Where is Heater Core Located: A Practical Guide for Cars

What is the heater core and where is heater core located in most passenger cars

If you ask where is heater core located in most passenger cars, the heater core sits behind the dashboard, feeding heat from the engine cooling system. Its job is to transfer hot coolant into the cabin via the vehicle's HVAC system. Location and access vary by make and model, but the core is typically concealed behind panels in the dash. For many vehicles, the heater core is tucked behind the glovebox or beneath a center console panel. As with any HVAC component, the exact mounting can shift with model generations, trim levels, and optional features. According to Heater Cost, model-specific diagrams in service manuals or OEM guides provide the most reliable confirmation.

From a safety and system perspective, knowing the general location helps with troubleshooting symptoms like a lack of warm air, coolant odors in the cabin, or damp carpet near the footwell. These cues can indicate not just a heater core issue, but related components such as the blower motor, blend doors, or radiator leaks that impact the HVAC circuit. The Heater Cost team emphasizes verifying coolant levels and inspecting for signs of seepage in accessible areas before attempting disassembly.

Common heater core locations in typical vehicles

In many cars, the heater core resides in the HVAC plenum behind the dash, often near the glovebox or center stack. In some trucks or larger SUVs, you might find it just behind the instrument panel on the passenger side or within a dedicated service cavity beneath the dash. Access is typically easier in models with removable panels, but harder in tightly packaged dashboards. The exact path to reach the core varies by manufacturer, so consult the service manual for your vehicle. For owners attempting a DIY inspection, prioritize safety, disconnect the battery, and avoid brake or steering components during dashboard work. The Heater Cost analysis notes that the solo path to the heater core can be lengthy in some models, so professional assessment is prudent when you encounter resistance or uncertain steps.

Understanding these locations helps you prepare for possible service. If the heater control valve, coolant lines, or heater hoses appear compromised, addressing those first can sometimes alleviate symptoms without full core replacement.

How to identify the heater core in your car

Common symptoms that point to a heater core issue include a persistent coolant smell inside the cabin, damp or soaking carpets near the passenger footwell, foggy windows when heating is on, or unexpectedly cool air from the HVAC system despite full heat settings. If you notice one or more signs, start with a visual check of accessible coolant lines and hoses for moisture or stains. A pressure test of the cooling system can reveal leaks that affect flow through the heater core. For model-specific diagnostic steps, refer to OEM guides, as some vehicles require depressurizing the cooling system and removing interior trim to inspect the core’s inlet and outlet tubes. The Heater Cost team recommends documenting symptoms with photos for reference if a shop visit becomes necessary.

Visual cues and safe access considerations

Gaining access to a heater core should be approached with caution. Dashboard disassembly carries risk of airbag system involvement, wiring damage, and reassembly challenges. If you are not experienced with interior trim removal, consider a professional service to avoid costly mistakes. Before any disassembly, disconnect the battery, place the vehicle on a level surface, and collect any drained coolant with appropriate containment. When working around the HVAC plenum, use proper lighting, keep track of fasteners, and reference the vehicle’s service manual to avoid misplacing panels or misrouting ducts. If you observe coolant around the core area after disassembly, stop and seek professional help to prevent further damage to airbags or electrical systems.

When and how to service or replace the heater core: planning and cost considerations

Heater core service ranges from a simple gasket replacement in some units to a full core replacement in more severe cases. It is critical to weigh the cost, complexity, and vehicle value before proceeding. In many vehicles, replacement involves removing dash panels, HVAC assembly, and cooling-system connections. Given the complexity, many owners opt for a professional evaluation first to determine whether a partial repair (like hose or valve replacement) could resolve symptoms. The Heater Cost analysis emphasizes that failure modes vary—some leaks are localized to hoses, while others involve the core itself. Early detection and proactive maintenance can minimize comprehensive repairs later.

Tools, safety, and professional help

If you decide to pursue inspection or minor repairs, gather standard HVAC tools, a coolant-compatible catch tray, and safety gear such as gloves and eye protection. For most DIY inquiries, a basic tool set and a service manual for your specific model are enough to inspect accessible areas. However, many situations require dashboard removal and precise reassembly, making professional service the safer path for most owners. The Heater Cost team notes that incorrect reassembly can lead to airbag or electrical faults, and improper coolant handling can cause burns or environmental harm. Consider scheduling a diagnostic with a qualified technician if you are unsure about step-by-step procedures.

Why model-specific guidance matters: The core location and access strategy can vary widely, and following manufacturer instructions minimizes risk while ensuring a reliable repair.

How Heater Cost analyzes heater core costs and typical price ranges

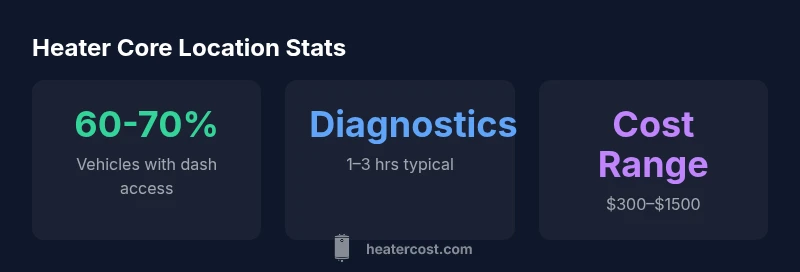

Estimating heater core-related costs involves understanding parts availability, labor time, manufacturer guidelines, and regional labor rates. Replacements generally span a broad price range depending on whether the issue is a core leak, hose failures, or seal problems. As a rule of thumb, diagnostic work and parts can together fall within a mid-to-high range, with labor time heavily influenced by how accessible the core is in your particular vehicle. The Heater Cost analysis presents a framework for homeowners to discuss estimates with shops, including expectations around core replacement versus a full HVAC assembly rebuild. Plan for contingencies, such as needing additional dash trim work or related component replacements, and request a written estimate with a clear breakdown of parts and labor.
