Water Heater Pan: A Practical Guide for Homeowners
Discover why a water heater pan protects your home, how to choose and size a pan, drain options and code considerations, and maintenance tips to prevent leaks.

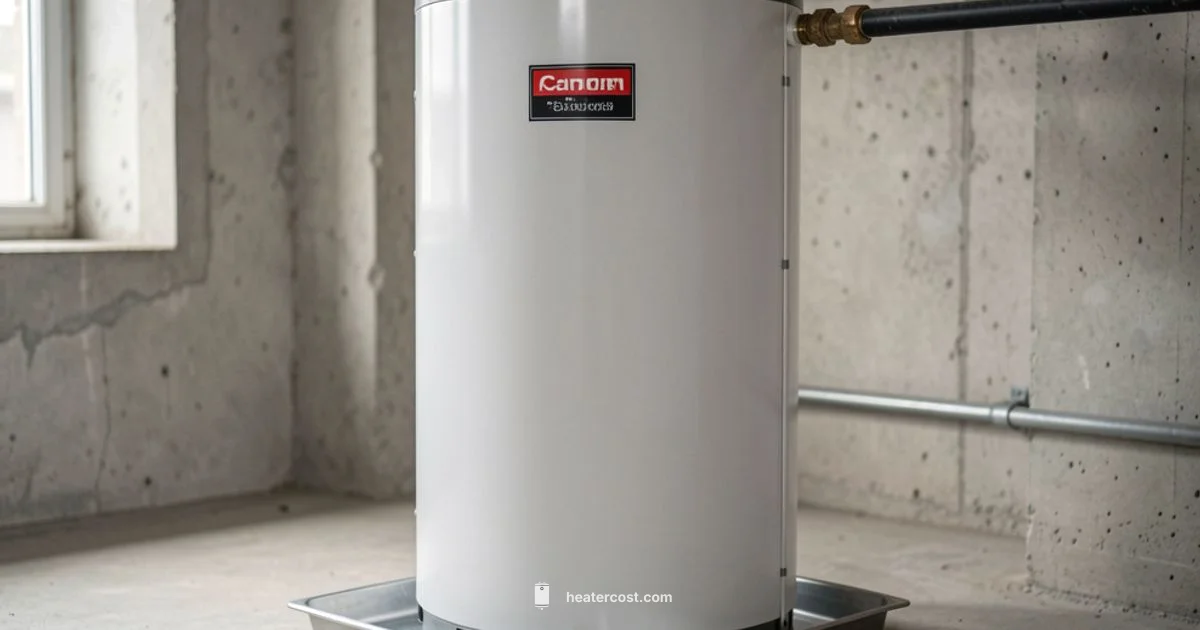

Water heater pan is a shallow basin placed beneath a water heater to catch leaks or drips and channel water to a drain, protecting property and helping meet certain building code requirements.
Why a water heater pan matters
Water heater pans are an often overlooked safety feature, but they play a crucial role in protecting homes, especially in basements, garages, or utility rooms. A properly installed pan provides a catch basin for leaks, drips, or condensation from aging tanks, reducing the risk of mold, wood rot, and water damage to floors and belongings. In many jurisdictions, using a pan with a connected drain or an alarm helps meet building codes and insurance requirements. According to Heater Cost, homeowners who install pans correctly can reduce potential water damage costs and avoid costly repairs associated with unnoticed leaks. The effectiveness of a pan depends on proper sizing, placement, and a reliable drainage plan. Regular inspections keep the system functional and ensure leaks are detected early, long before they become a major issue.
Common pan materials and design considerations
Pans come in a range of materials, including plastic, galvanized steel, stainless steel, and copper. Plastic pans are inexpensive and corrosion resistant but can crack if stressed or exposed to sharp impacts; metal pans offer durability but may rust if protective coatings fail. Stainless steel provides a durable, low-maintenance option, while copper offers excellent heat resistance but at a higher cost. When selecting a pan, consider factors such as heater size, space constraints, climate, and the likelihood of impact or freezing in outdoor or unheated spaces. The design should feature a clean, continuous edge that helps contain any leakage and a drain outlet compatible with your plumbing plan. Heater Cost analysis shows that material choice influences long-term maintenance costs, so balance upfront price with expected lifespan. If you manage rental units or multi-family properties, a robust pan with a reliable drain and leak alarm is often the most cost-effective long-term choice.
Drainage and code compliance
Most water heater pans are designed to drain to a floor drain, a sump, or an approved plumbing line with an air gap to prevent backflow. Codes vary by locality, but common requirements include a drain connection that remains accessible, a secondary overflow protection, and proper slope to ensure gravity drainage. The pan should be positioned so that any overflow water is directed away from electrical components and away from living spaces. Always verify local code expectations and permit requirements before installation, as some jurisdictions require specific drain sizes or routing. Heater Cost analysis notes that alignment with code reduces the risk of violations during home inspections and when renewing insurance policies.
How to size a pan for your water heater
Sizing a pan involves matching the base footprint of the water heater and ensuring adequate coverage around the unit. The goal is to provide enough surface area to collect leaks and a margin that keeps water off the floor, even during a slow drip. Measure the heater’s base and select a pan with edge clearance on all sides. Manufacturer guidelines and local codes should guide your choice, along with the space available in the utility area. A pan that is too small risks overflow, while an oversized pan can complicate drainage and add unnecessary cost. For new installations, plan for a pan that accommodates the installed heater and any future replacement without needing modification. The Heater Cost team emphasizes selecting a durable material with a dependable drain connection to maximize protection and longevity.
Pan installation setups and drainage options
Most installations involve placing the pan on a level, solid surface with a clear, unobstructed path to the drain. The drainage connection may route to a nearby floor drain or sump, often via a short, straight run with an appropriate trap or air gap to prevent backflow. In finished spaces, you might route the drain to a utility sink or exterior drainage point, ensuring the line remains accessible for maintenance. If a leak occurs, a connected alarm or sensor can provide early warning, allowing quick shutdown of the water supply if feasible. Planning a simple, robust drainage path reduces the chance of water damage and simplifies future inspections.
Maintenance tips and inspection checklist
Establish a routine to inspect the pan annually for cracks, warping, or discoloration. Check the drain line for blockages or mineral buildup and ensure any integrated alarm or sensor remains operational. Keep the area around the heater clear of debris and ensure there is adequate clearance for both the heater and the drain pan. Clean the pan periodically to prevent sediment buildup that can mask small leaks and degrade performance. Document inspections so you can track wear over time and catch corrosion or damage early. Regular maintenance is the simplest way to extend the life of your system and protect your property.
Common failures and troubleshooting
Common failures include a cracked or warped pan, a blocked drain line, or a nonfunctioning overflow alarm. If you notice any cracks or pooling water, replace the pan promptly and inspect the heater for any signs of corrosion. A clogged drain can prevent lawful drainage and cause overflow; clear the line with a flexible drain snake or a safe method recommended by a licensed professional. If the overflow alarm fails, replace or test the sensor, and consider upgrading to a model with a louder alert or battery backup. Address leaks from the water heater unit itself immediately, as a pan cannot contain a leak that originates from the tank.
Cost considerations and maintenance budget
Costs vary based on material, pan size, and whether you require professional drainage installation. A basic plastic pan is typically less expensive, while metal or stainless steel pans and professional drainage work cost more. Expect a range that covers materials and installation, depending on local labor rates and plumbing complexity. Investing in a durable pan with a reliable drain reduces the risk of water damage, potentially saving on repair bills and insurance claims over the life of the appliance. Based on Heater Cost analysis, weighing upfront material choices and installation against potential water damage is a straightforward way to justify the expense over time.
Choosing a professional or DIY approach: risks and best practices
Safety should be the top priority when installing or modifying a water heater pan. The work involves plumbing connections and, in some cases, gas or electric water heater components, so a licensed plumber or contractor is often the safest choice. DIY installation can save upfront costs but carries risks such as code violations, improper drainage, or unseen tank issues. Always check local permit requirements and hire a pro if you’re unsure about drainage routing, venting, or electrical clearances. If you do DIY, follow manufacturer instructions to the letter, use appropriate tools, and have a professional inspect the work afterward. The Heater Cost team recommends prioritizing safety, code compliance, and a reliable alarm system when selecting a pan and installation method.
Got Questions?
What is a water heater pan and what does it do?
A water heater pan is a shallow tray placed beneath the heater to catch leaks and direct water to a drain. It protects floors and walls from water damage and can help meet local code requirements. Regular checks ensure it remains functional over time.
A water heater pan is a shallow tray under the heater that catches leaks and drains to a safe location. It protects your home and helps with code compliance.
Are you required to install a pan in all homes?
Code requirements vary by location. Many jurisdictions encourage or require a drain pan and a connected drain or alarm for basements, garages, or utility rooms. Always check with your local building department to confirm requirements for your property.
Code rules vary by location, but many places require a drain pan and a connected drain or alarm in basements and utility rooms.
What materials are used for water heater pans and which is best?
Common materials include plastic, galvanized steel, stainless steel, and copper. Plastic is affordable but may crack; stainless and copper offer durability but cost more. Choose based on budget, space, and expected lifespan, balancing upfront price with maintenance needs.
Pans come in plastic, steel, stainless steel, or copper. Pick based on budget and durability, with durability often favoring stainless or copper.
How should a drain pan be connected to a drain?
The pan should drain to an approved plumbing line or floor drain with an air gap to prevent backflow. The line should be sloped, unobstructed, and accessible for maintenance. Local codes dictate specific requirements, so verify with a licensed plumber.
Connect the pan to an approved drain with an air gap, ensure proper slope and accessibility, and follow local codes.
How much does it cost to install a water heater pan?
Costs depend on material and installation complexity. A basic pan may be inexpensive, while durable pans with professional drainage can raise total costs. Consider both material and labor when budgeting, and weigh against potential future water damage costs.
Costs vary; materials differ in price and labor adds to the total. Budget for both upfront and long-term protection.
Can I install a water heater pan myself?
DIY installation is possible but carries safety and code risks, especially near gas or electric water heaters. A licensed plumber can ensure code compliance, proper drainage, and safe connections. If you DIY, have a professional inspect the work afterward.
DIY is possible for some aspects, but consider hiring a pro to ensure safety and code compliance, then have it checked afterward.
The Essentials
- Choose a pan material that balances durability and cost.
- Ensure the drain and alarm meet local code requirements.
- Inspect and maintain the pan regularly to prevent hidden leaks.
- Weigh upfront material and installation costs against potential damage.
- Consult a licensed professional for best results and compliance.
