Water Heater Drip Pan: Definition, Benefits, and Installation

What is a water heater drip pan and where is it used?

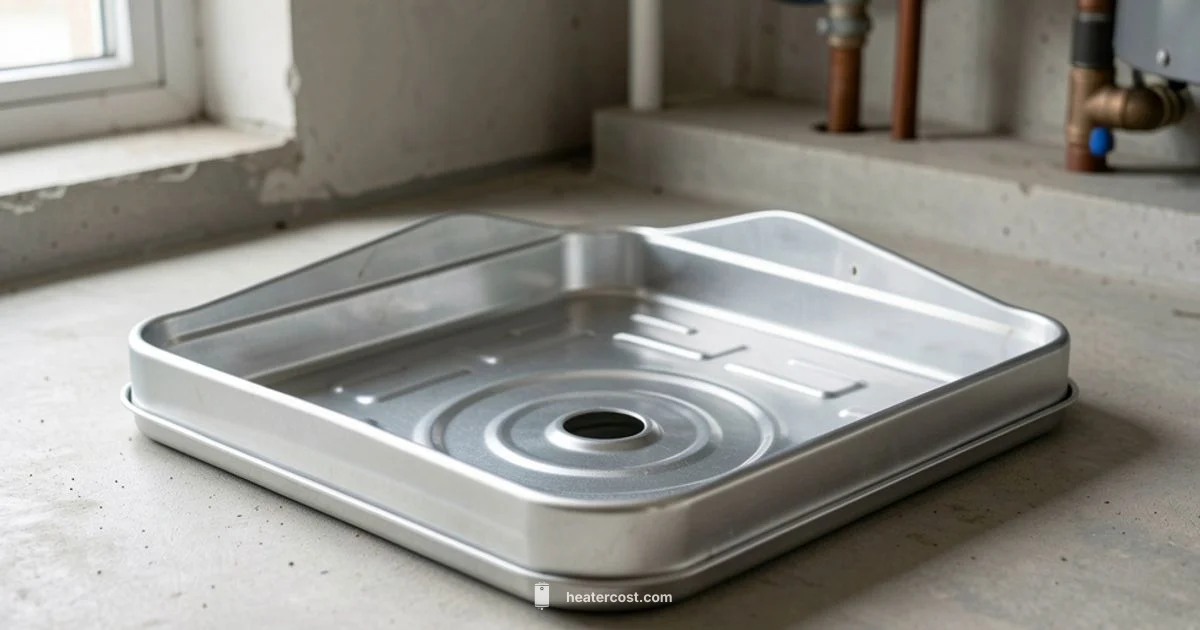

A water heater drip pan is a shallow, basin like tray that sits beneath a water heater. Its primary purpose is to capture any water that leaks from the tank, as well as condensation from the unit during normal operation. Drip pans are most commonly found in spaces where a leak could cause significant damage, such as basements, garages, laundry rooms, and utility closets. In these areas, the pan serves as a first line of defense, buying time for you to address a leak before it floods the surrounding area. Drip pans come in different materials—durable plastics such as PVC or polymer blends for light duty setups, and metal pans for more industrial or high-traffic locations. Some systems pair the pan with a drain line that directs water to an appropriate drain, while others rely on a raised lip to slow accidental overflow until a secondary measure is taken. Size and fit matter; the pan should extend beyond the base footprint of the heater to catch leaks that occur near inlet and outlet connections.

Why a drip pan matters for safety and property protection

Water leaks from a failing water heater can cause hidden structural damage, mold growth, and costly repairs. A drip pan directly under the heater catches both steady condensation and sudden leaks, reducing the likelihood that water will spread across floors, into cabinets, or onto electrical components. In homes with basements or garages, a pan can prevent floor damage and give occupants time to intervene. Many building codes and local regulations acknowledge the risk of water damage and may require a drain connected drip pan in certain locations or for units installed in non traditional spaces. Even when not required, a drip pan is a prudent investment that can extend the life of floors and reduce the risk of insurance complications after a leak.

Key features of an effective drip pan

A good drip pan offers reliable drainage, sufficient capacity, and compatibility with your heater model. Look for pans with a built in drain outlet or a standard threaded drain that leads to a floor drain or laundry sink. Materials should be durable and resistant to corrosion; PVC and coated metals are common choices. A raised base or standoffs help maintain air flow and prevent rust on the bottom surface. Some pans include overflow protection or integrated alarms to alert you to a leak before water escapes the pan. The fit should be squarely beneath the heater and deep enough to capture leaks around connections. Finally, verify that the pan is compatible with your heater type, whether it is a traditional tank style or a tankless unit where a pan might not be necessary but is sometimes used for ceiling or wall mounted systems in tight spaces.

Choosing the right size and style for your water heater

Selecting the correct drip pan starts with knowing the heater footprint and the space around it. The pan should be wide enough to cover the base and provide a margin for leaks at the inlet/outlet connections. For larger homes or multi unit setups, you may require a deeper pan or a double layer pan with a secondary overflow channel. Tankless water heaters often have different pan considerations due to their compact form factor; in some designs a tray is still used to collect condensate from the heat exchanger. If you have a combined system, such as a water heater paired with a humidifier, ensure the pan accommodates all potential drip paths. Finally, confirm that the pan’s drain opening will route water to an appropriate drainage path that won’t create a new hazard.

Installation considerations and code compliance

Installing a drip pan requires attention to drainage, connections, and local code requirements. If your pan includes a drain, ensure the outlet is directed to a permitted drain or floor drain with a properly sized pipe. In many jurisdictions, pan installations in basements or garages may require a trap, vent, or backwater valve, and some regions may require a permit and inspection. It is important to keep the drain line clear and accessible, and to avoid creating a trip hazard with an exposed pipe. For renters, consult the building management before making any changes. A licensed plumber can ensure the pan is level, properly anchored, and that the drain path remains unobstructed.

Maintenance, inspection, and leak detection

Regular maintenance helps ensure the drip pan remains functional. Inspect the pan for cracks, warping, or discoloration that might indicate failure. Check the drain line for clogs, leaks, or corrosion and ensure the connection to the heater remains secure. Clean debris from the pan and verify the overflow relief features, if present, are functioning. If the pan does not include an alarm or moisture sensor, consider adding a simple water sensor near the heater to trigger alerts if the water level rises. Schedule periodic inspections as part of a home maintenance routine, particularly after heavy storms or seasonal changes when leaks may be more likely.

Common issues and troubleshooting

Common problems include a cracked or warped pan, a blocked drain line, rust through the bottom, or misalignment under the heater. If water is seen pooling around the unit, stop using the heater and inspect for leaks at connections or the tank seam. A clogged drain can lead to overflow; clear the line and test with a small amount of water to ensure flow. If the pan is not draining, check for kinks in the line or a clogged trap. Insulation around the pipes should be intact to reduce condensation, which can cause frequent minor drips that wear the pan over time.

Cost considerations, value, and budgeting

A drip pan is a cost effective addition to many homes, especially where leaks could cause extensive damage. Costs vary by material, size, and whether the pan includes an integrated drain, alarm, or sensor. Installation costs depend on labor rates, accessibility, and whether any plumbing work is required to route the drain to an appropriate outlet. While the upfront expense may seem modest, the long term value is in reducing water damage risks, protecting sub floors, and potentially lowering insurance premiums by demonstrating proactive maintenance.

Practical tips for homeowners and renters

• Verify your heater model’s manufacturer recommendations and any local code requirements before purchasing a drip pan.
• Choose a pan with a drain when possible, and route it to a nearby floor or utility sink to maintain safe, accessible drainage.
• If you rent, coordinate with the property manager for approvals and any required inspections.
• Inspect the pan twice yearly and after major weather events to catch cracks or misalignment early.
• Keep the area around the water heater clean and unobstructed to facilitate quick visual checks.
