Water Heater Drain Pan Guide for Home Protection
Learn what a water heater drain pan is, how to choose, install, and maintain it, and how it protects your home from leaks. Practical tips, budgeting notes, and maintenance insights for homeowners, renters, and property managers.

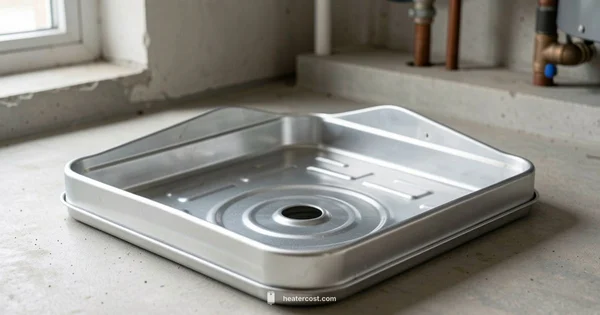

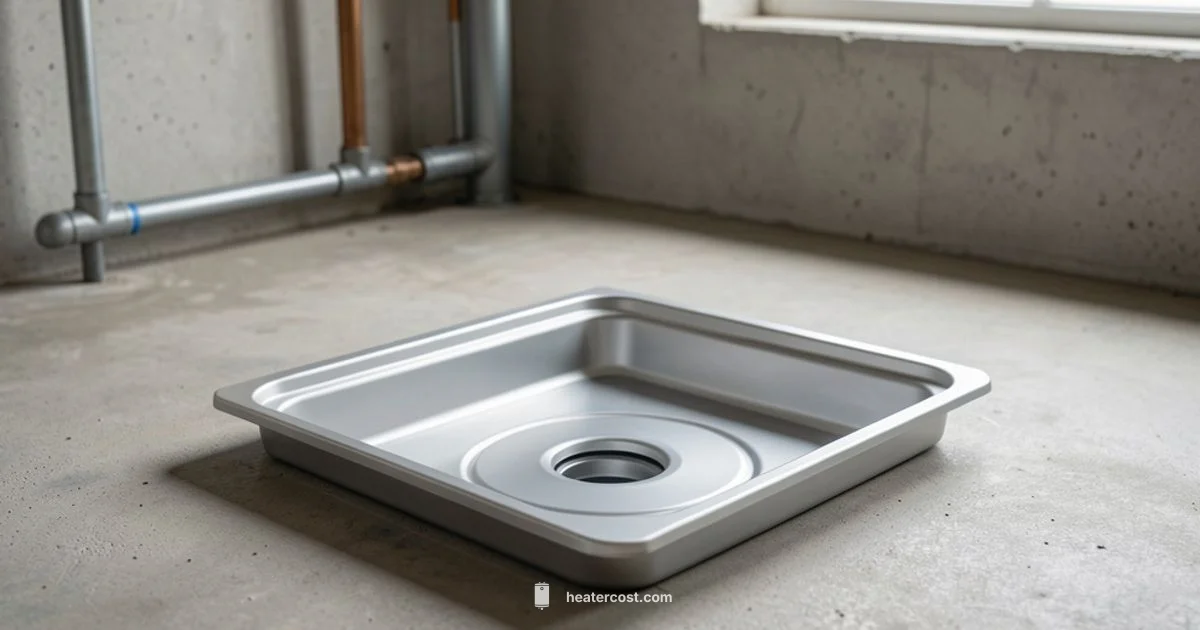

Water heater drain pan is a shallow tray placed beneath a water heater to catch leaks and direct water to a safe drain, protecting floors and nearby structures from damage.
What is a water heater drain pan and why it matters

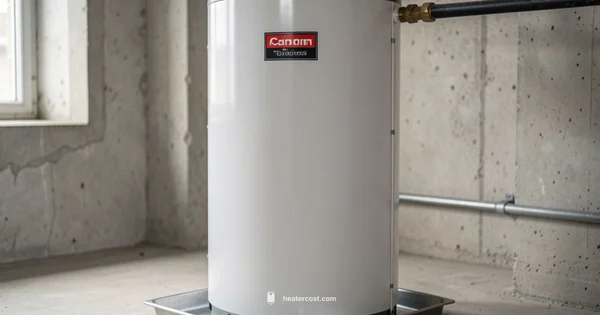

A water heater drain pan is a small, shallow tray positioned under a water heater with the purpose of catching any water that leaks from the tank or condenses on the heater. Leaks can occur from a failing valve, a crack in the tank, or even from routine condensation in humid spaces. The drain pan provides a first line of defense, directing water to a drain and reducing the risk of water damage to floors, bases, and nearby cabinets. According to Heater Cost, installing a drain pan is a prudent safeguard for most homes, especially where the heater sits on a finished floor or in an area without immediate access to a drain. Keeping the area dry also helps prevent mold and wood rot and can simplify routine maintenance for property managers who oversee multiple units.
Materials and design options
Drain pans come in several materials, each offering different durability and cost profiles. Plastic pans (often high density polyethylene or PVC) are lightweight, resistant to corrosion, and economical. Metal pans—steel or galvanized steel—are durable but may require coatings to resist corrosion in humid spaces. Aluminum pans offer a good balance of weight and durability. Whichever material you choose, look for a smooth interior surface to minimize sediment buildup and a built in or compatible drain outlet to connect to a building drain. Some pans include a built in leak sensor or an integrated stand to improve airflow and reduce the chance of mold buildup. Ensure the pan is compatible with your heater’s footprint and that the drain connection matches your home’s plumbing. Heater Cost’s analysis highlights that choosing a robust pan and proper connections can extend the life of the system and reduce subsequent repair costs.
Sizing, placement, and drainage considerations
The pan should be sized to accommodate the heater plus a margin for accidental leaks or overflow. It should also be positioned so that any water collected has a clear path to a proper drain without impeding service access to the unit. In addition, a gentle slope to the drain helps ensure drainage even if the pan is not perfectly level. Avoid placing the pan on uneven surfaces, which can cause pooling in one corner. If you have a condensate line or floor drain nearby, verify that the pan’s outlet matches standard plumbing fittings and that the discharge path complies with local code and safety practices.
Code expectations and installation guidance
Local codes often regulate drain pans for water heaters located in garages, basements, or other non exterior spaces. Some jurisdictions require a drain pan with an approved connection to a drain or sewer, especially when the heater is installed above finished flooring. Always check the latest local codes before purchasing or installing a pan. If you are unsure, consult a licensed plumber or building inspector to ensure compliance and proper venting and clearance around the unit. Adhering to code not only avoids penalties but also guarantees that the system remains safe and repairable.
Installation best practices and practical steps
Proper installation starts with selecting the right pan for your heater’s footprint and ensuring it sits flat on a stable surface. Connect the drain outlet to a safe drain path, using appropriate fittings and sealants to prevent leaks. Keep the drain path clear of debris, and avoid burying the drain line under insulation or flooring materials. Leave access for inspection and future maintenance. If you choose a pan with a built in sensor or alarm, position it where you can hear it from common living spaces. For most homeowners, hiring a licensed plumber provides peace of mind and ensures that all connections are secure and code compliant.
Maintenance routines and lifespan expectations
Regular inspection is essential to catch cracks, corrosion, or clogs early. Schedule a yearly check of the pan’s interior for cracks or dents and ensure the drain line remains clear. If you notice rust spots, warped edges, or persistent dampness around the heater, replace the pan promptly. Cleaning the pan to remove sediment or standing water reduces mold risk and odor, while testing the drain connection ensures functional drainage. A well maintained pan can extend the life of your water heater and protect flooring from costly water damage.
Common issues and troubleshooting tips
Common problems include clogs in the drain line, improper slope causing water to pool, or a pan that is too small for the heater, leading to overflow. If you detect dampness or a musty smell around the heater, inspect for leaks in the drain pan or connections and verify that the pan is properly seated. For persistent leaks, replace the pan or upgrade to a heavier duty model and consult a licensed professional to ensure correct sizing and connection.
Cost considerations, budgeting, and value
Prices for drain pans vary by material, size, and features, with basic pans costing less and premium models offering corrosion resistance and integral sensors. Installation costs depend on local labor rates and the complexity of routing the drain line. In general, homeowners can expect a pan and installation to fall within a broad range, and Heater Cost notes that investing in a durable pan usually lowers risk of water damage and future repair costs. Always factor in drainage components, sealants, and potential permit or inspection fees when budgeting.
Practical homeowner checklist and next steps
- Measure the heater footprint and select a pan with a comfortable margin. - Inspect the area for existing moisture and address prior damage. - Plan a drain route that complies with local codes and remains accessible for maintenance. - Schedule an annual inspection of the pan and connection to keep the system dry. - Consider a pan with an integrated sensor for early leak detection. - When in doubt, hire a licensed plumber to ensure proper sizing and installation.
Got Questions?
What is a drain pan and why do I need one?
A drain pan is a shallow tray placed under a water heater to catch leaks and direct water to a safe drain. It helps protect floors, cabinets, and other materials from water damage and mold growth. In many cases, it is required by code in various installation scenarios.
A drain pan catches leaks from a water heater and directs the water to a drain, protecting your floors and nearby finishes. It is often required by code in certain installations.
Do all water heaters require a drain pan?
Not all installations require a drain pan, but many do, especially when the heater is in a garage, basement, or finished space. Local codes and the heater’s location determine the requirement. If in doubt, consult a licensed plumber.
Most installations in garages, basements, or finished spaces benefit from a drain pan, and local codes often require it.
What materials are drain pans made of?
Drain pans come in plastic, steel, and aluminum. Plastic is economical and corrosion resistant, steel offers durability, and aluminum provides a lighter weight option. Choose a material that resists corrosion in your environment and fits the heater size.
Pans are typically plastic, steel, or aluminum. Each has pros and cons, so pick one that matches your heater and space.
How do I install a water heater drain pan?
Installation involves placing the pan under the heater, ensuring proper fit, connecting the drain outlet to a safe drainage path, and maintaining clearance around access panels. If you are unsure, hire a licensed plumber to ensure proper sizing and code compliance.
Install the pan under the heater, connect the drain, and keep access clear. If unsure, hire a professional.
What size should a drain pan be?
The pan should be large enough to cover the heater footprint with some margin for leaks. It should have a reliable drain connection and not obstruct service access. Exact dimensions depend on the heater model and space.
Choose a pan that covers the heater with some margin and fits the space without blocking access.
How often should I inspect my drain pan?
Inspect the drain pan at least once a year for cracks, rust, or standing water. Check the drain line for clogs and ensure connections remain secure. Promptly replace a damaged pan.
Inspect annually for damage and clogs, and replace a damaged pan promptly.
The Essentials
- Choose a pan with durable material and safe drainage.
- Size the pan to cover the heater footprint with room to spare.
- Connect to a compliant drainage path and maintain clear lines.
- Inspect annually for rust, cracks, or clogs.
- Budget for pan cost plus professional installation when needed.
