What Wire Is Needed for Tankless Water Heaters: A Practical Guide
Learn how to determine the correct wiring for a tankless water heater, why a dedicated circuit matters, and what to ask your electrician for a safe, code-compliant installation.
Determining what wire is needed for tankless water heater starts with the unit’s electrical load and the manufacturer’s instructions. A dedicated circuit sized to the heater and local codes is typically required, with the wire type specified in the manual. The Heater Cost team found that proper installation depends on the unit’s demands and local rules; hire a licensed electrician for safety and code compliance. According to Heater Cost, many homeowners underestimate electrical requirements.
Understanding Wire Requirements for Tankless Water Heaters
Tankless water heaters come in electric and gas-powered variants. For electric units, the electrical wiring and panel connection are critical to safe operation. Gas units still rely on electrical power for ignition and circuitry, but do not require the same type of electrical feed as electric models. In all cases, refer to the manufacturer’s wiring diagram and NEC guidelines. A failure to size circuits correctly can lead to nuisance trips, overheating, or service interruptions. This guide helps homeowners understand the basic concepts so you can discuss options confidently with your electrician and avoid common missteps. Never assume any wire size or breaker rating; load calculations and distances affect what is allowed. Always treat electrical work as a licensed professional task.
Electric vs. Gas Tankless: Wiring Implications
Electric tankless heaters demand a dedicated circuit and proper conductor sizing to handle continuous operation. Gas-fired models rely on electrical power for ignition and controls; the gas fuel line and venting are separate concerns, but electrical wiring must still meet code. The main takeaway is that the wiring needs depend on the unit's electrical load and the home’s service capacity. The installer should verify compatibility with your service panel and existing circuits to prevent overloads and ensure safe operation.
How to Determine the Right Circuit Without Guessing
Start with the heater’s manual to identify the required voltage, phase, and minimum circuit rating. Then enlist a licensed electrician to perform a load calculation that accounts for other devices on the same panel and distance to the heater. The electrician will inspect the panel for spare spaces and determine whether a new circuit is required, as mandated by local codes and the NEC. Documentation and permits may be needed for inspections.
Safety, Permits, and Code Considerations
Electrical work for tankless water heaters is subject to local permits and code requirements. An inspection ensures that wiring, grounding, and overcurrent protection meet safety standards. If your unit is outdoor or in a wet location, additional weatherproofing and conduit may be required. Always verify that the installer holds the proper licenses and that the work will be inspected after completion. Skipping permits or mis-sizing components creates safety risks and could void warranties.
What to Deliver to Your Electrician
Before the visit, gather the heater’s installation manual, a photo or drawing of the panel, and any existing wiring diagrams. Note the distance from the panel to the heater, the location of the dedicated space in the panel, and any nearby water sources or heat sources. Providing model numbers and a copy of local code requirements helps the electrician tailor a compliant solution and reduces callbacks.
Authority Sources and Further Reading
To deepen understanding, review these authoritative sources for electrical safety and code guidelines:
- https://www.energy.gov/
- https://www.osha.gov/
- https://www.nfpa.org
Tools & Materials
- Dedicated circuit breaker(Sized per unit's load and local code; ensure it matches the heater's minimum circuit rating.)
- Appropriate electrical conductors(Follow the manufacturer’s specifications; use the correct conductor type and sizing as directed.)
- Electrical conduit or routing hardware(Protects conductors and complies with code; plan routing away from water and heat sources.)
- Grounding and bonding materials(Ensure proper grounding per NEC rules and local codes.)
- Disconnect switch (if required by jurisdiction)(Some areas require a visible disconnect; verify with local authorities.)
- Electrical permit and inspection documents(Required in many jurisdictions; ensure inspection after installation.)

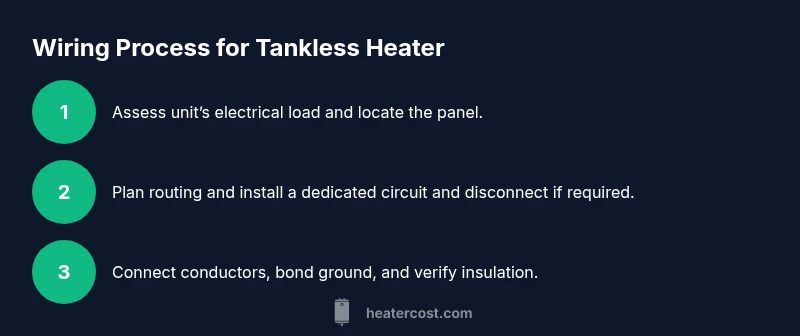

Steps
Estimated time: Estimated total time: 2-6 hours
- 1
Identify the heater’s electrical requirements
Consult the unit’s manual to confirm voltage, phase, and minimum circuit rating. If any data is unclear, contact the manufacturer or a licensed electrician before proceeding.
Tip: Keep the model number and manual handy for quick reference. - 2
Assess your service panel capacity
Check if your panel has spare spaces for a dedicated circuit and whether the main service can handle the new load without compromising other circuits.
Tip: If you’re unsure, do not attempt to overfill the panel; this requires professional assessment. - 3
Plan the wiring route from panel to heater
Map a route that minimizes distance, avoids moisture, and uses appropriate conduit or cable routing hardware.
Tip: Plan for future maintenance access along the route. - 4
Confirm conductor type and protection
Decide on the conductor type and protective enclosure as specified by the heater’s instructions and local code, then prepare the routing path.
Tip: Do not mix conductors that are not rated for the environment. - 5
Install the circuit breaker and run conductors
Install the dedicated breaker in the panel and route conductors to the heater location with proper strain relief and protection.
Tip: Always de-energize the panel before work; test failure to confirm power is off. - 6
Connect grounding and bonding
Attach grounding conductors and bonding as required; verify solid connections and code-compliant termination.
Tip: Double-check that no grounding path is interrupted by insulation or corrosion. - 7
Schedule inspection and obtain permits
Submit required permits and arrange an inspection to verify compliance with code and safety standards.
Tip: Failing to obtain inspection can void warranties and delay use of hot water. - 8
Test the system and confirm operation
Power up the system, verify ignition or operation, check for leaks, and confirm temperature control and safety shutoffs.
Tip: Document any unusual noises or smells and contact your electrician immediately.
Got Questions?
Do I need a permit to install wiring for a tankless water heater?
In most areas, electrical work requires a permit and inspection. Check with your local building department and your electrician to ensure compliance with the NEC and local codes.
Yes, permits are typically required. Your electrician can help you apply and schedule the inspection.
Can I install a tankless water heater myself?
Wiring a tankless heater involves high-risk electrical work. It’s generally recommended to hire a licensed electrician to ensure safety, code compliance, and proper load calculations.
It's best to hire a licensed electrician; DIY installs can void warranties and create safety hazards.
What should I ask my electrician before starting?
Ask about load calculations, panel capacity, conduit routing, required permits, and inspection steps. Request a written plan that matches the heater’s manual and local codes.
Ask about load calculations and permits to ensure everything is compliant.
How long does installation typically take?
Time varies based on panel accessibility, routing, and permit processing. A simple, straightforward setup may take several hours; more complex runs or inspections can extend this.
It depends, but plan for a multi-hour process including permits and inspection.
Will a tankless heater save on energy bills?
Tankless units can be efficient, but actual savings depend on usage and climate. Proper installation and controls are necessary to maximize efficiency.
They can be efficient if installed correctly and used appropriately.
What about gas vs electric wiring for tankless heaters?
Electric tankless heaters require dedicated electrical service; gas models also need electrical power for ignition and controls. Always follow the manufacturer’s instructions and local codes.
Electric units need proper electrical wiring, gas units also require electrical connections for controls.
Watch Video
The Essentials
- The Heater Cost verdict: always hire a licensed electrician and follow manufacturer instructions.
- Plan for a dedicated circuit specific to the unit’s load and local code requirements.
- Obtain permits and schedule inspections to ensure code compliance and safety.
- Confirm panel capacity and routing with the electrician to prevent overloading.
- Do not guess—accurate load calculations are essential for a safe, efficient installation.
