What a Water Heater Looks Like: A Practical Homeowner Guide
Discover the common appearances of water heaters, how to identify tanked vs tankless models, locate and read labels, and practical inspection tips to keep your hot water system safe and efficient. A practical guide from Heater Cost.
Water heater is a device that heats water for domestic use, typically a tank-type or tankless unit installed in basements, utility closets, or garages.
What a water heater looks like in a home

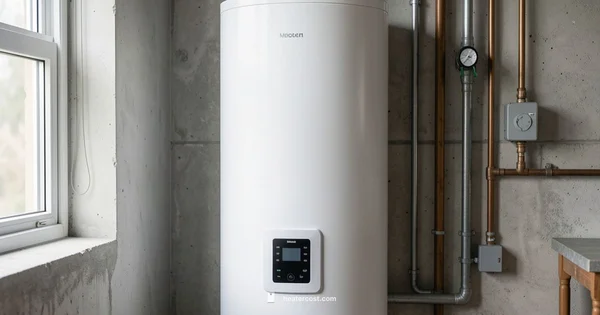

If you are wondering what does water heater look like in a typical home, here's a simple description. According to Heater Cost, most homes use either a tanked or tankless model. A traditional tanked water heater is a tall metal cylinder, typically 45 to 60 inches tall, with a cold water inlet and a hot water outlet on the top and access panels on the side. It is usually installed in basements, garages, laundry rooms, or utility closets with enough clearance for maintenance. Tankless models are smaller, typically wall mounted, and heat water on demand using a compact heat exchanger. They can be found in kitchens, utility rooms, or garages where space is limited. Understanding these visual cues helps you plan maintenance, identify model type, and communicate with a professional during service.
Tanked vs Tankless: Visual differences
The most obvious difference is size and mounting. A storage tank typically appears as a large cylinder with a vent pipe on gas models and two electrical access panels on electric models. Tankless units, by contrast, are compact boxes mounted on a wall and often have venting or intake pipes visible near the unit. The exterior casing, temperature control knobs, and any branding give clues to model family. Knowing which type you have matters for safety, maintenance, and energy use, but visually both can be clean and unobtrusive when installed with proper clearance.
Locating and labeling details you should read
The water heater is often tucked into a basement utility room, garage, or dedicated closet. When you find it, read the rating plate or label on the tank or cabinet. The label lists capacity, energy source, model and serial numbers, and safety information. If you have a tankless unit, the panel may be on the wall with a digital display. Recording these details helps with service scheduling and warranty checks.
Exterior features to inspect during routine checks
On the outside, look for a cold water supply pipe, a hot water outlet, a pressure relief valve, and a shutoff valve near the unit. The outer shell should be intact with minimal rust; insulation may be covered by a jacket. For gas models, a vent pipe should lead outdoors; for electric models, there may be a small electrical service panel nearby. These visible cues help you assess condition without opening panels.
Fuel type cues and appearance implications
Gas heaters require venting and usually a larger top vent; electric units lack a vent. A gas water heater will have a draft hood and combustion controls near the top, while electric units will show electrical connections and a two-element access panel on the side. The visual cues can help you determine whether you can safely perform basic checks or should call a licensed technician.
Common appearance issues signaling maintenance
Watch for puddles or corrosion around the base, damp insulation, rust on the tank, or valve leaks. A frayed or blistered insulation jacket indicates wear; if the TPR valve or discharge pipe shows water leakage, address immediately. These signs do not always mean imminent failure, but they warrant professional evaluation to prevent bigger problems.
Safe inspection steps you can perform without tools
Shut off the power at the service panel or the dedicated breaker for electric units. For gas heaters, turn off the gas supply if you suspect a leak and ventilate the area. Check the shutoff valve on the cold water line and ensure the discharge pipe is clear. Do not remove panels or attempt internal repairs; call a professional for anything beyond exterior checks.
Quick maintenance checklist and next steps
Create a yearly maintenance routine that includes visual checks, flushing the tank if required by your model, and scheduling professional inspections. Keep the area around the heater uncluttered and maintain clearances for safe servicing. The Heater Cost team recommends keeping your system well maintained, planning replacements based on life expectancy, and consulting a licensed pro for major work.
Got Questions?
Where is a typical residential water heater located?
Most homes place their water heater in basements, garages, or utility closets. In apartments, you may find them in laundry rooms or mechanical spaces. They’re usually near the main water line and away from living areas to reduce noise and heat exposure.
Most residential water heaters sit in basements, garages, or utility closets, near the main water line and away from living spaces.
How can I tell if it is gas or electric by looking at it?
Gas models typically have a vent on top or near the ceiling and may show a draft hood. Electric models usually lack venting and have two small access panels on the side for heating elements.
Gas heaters have a vent; electric ones don’t and show two side panels for elements.
What safety features should I look for on a water heater?
Look for a shutoff valve on the cold water line, a functioning temperature and pressure relief valve with a discharge pipe, and proper venting for gas models. Keep the surrounding area clear of combustibles.
Check the shutoff valve, relief valve with discharge pipe, and proper venting; keep the area clear.
Do tankless water heaters look different from tank models?
Yes. Tankless units are compact wall mounted boxes with minimal bulk, while tank models are tall cylinders. Look for size, mounting, and venting differences to tell them apart.
Tankless units are small boxes on a wall; tanks are tall cylinders with larger profiles.
Do I need permits to replace a water heater?
Replacement often requires permits or inspections depending on your location. Check with your local building department or a licensed contractor to ensure compliance.
Permits may be required; check with local authorities or a licensed pro.
Is it safe to inspect a water heater while it is heating?
Exterior inspection is generally safe, but avoid touching hot surfaces. If you smell gas or suspect a leak, evacuate and contact emergency services.
Don’t touch hot surfaces; if you smell gas, leave the area and call for help.
The Essentials
- Identify tanked vs tankless by size and mounting
- Check the location and access panels for clues
- Read the label for model, serial, and capacity
- Inspect safety features such as shutoff valves and relief valves
- Keep an annual maintenance routine to extend life
- Consult a licensed professional for major work
